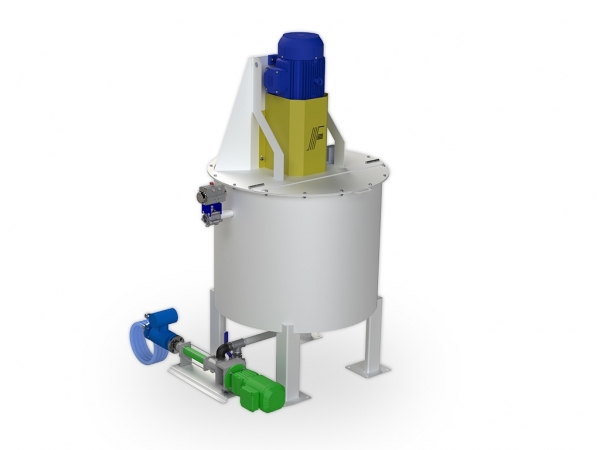

REPROCESSING MIX TANK

Focused on making the most of the waste generated when starting the extruder.

Its objective is to reprocess the meal discarded at the beginning of the extrusion stage when the meal is being conditioned for the use of the extruder, in addition to reprocessing the first discard from the extruder (correction of the feed point), dissolving all the applied product. in the tank in a liquid solution stirred by the diffuser rotor, in charge of breaking all the larger particles subsequently filtered through a mesh, limiting the granulometry of the solution and, again, pumping all the reprocessing to the preconditioner.

Eliminate expenses with the loss of raw material.

Includes electrical panel.

Characteristics:

- Unit capacity: 500L

- Body in stainless steel, thickness 2.00 mm.

- Agitator using 7.5 HP motor - three-phase

- Helicoidal pump driven by a 2 HP motor.

- Body height: 850 mm.

- Inner diameter: 950 mm.

- Internal stainless steel sieve with 3 mm hole.

- 3 full port 1 1/4" ball valves.

- Level float system for volume control.
